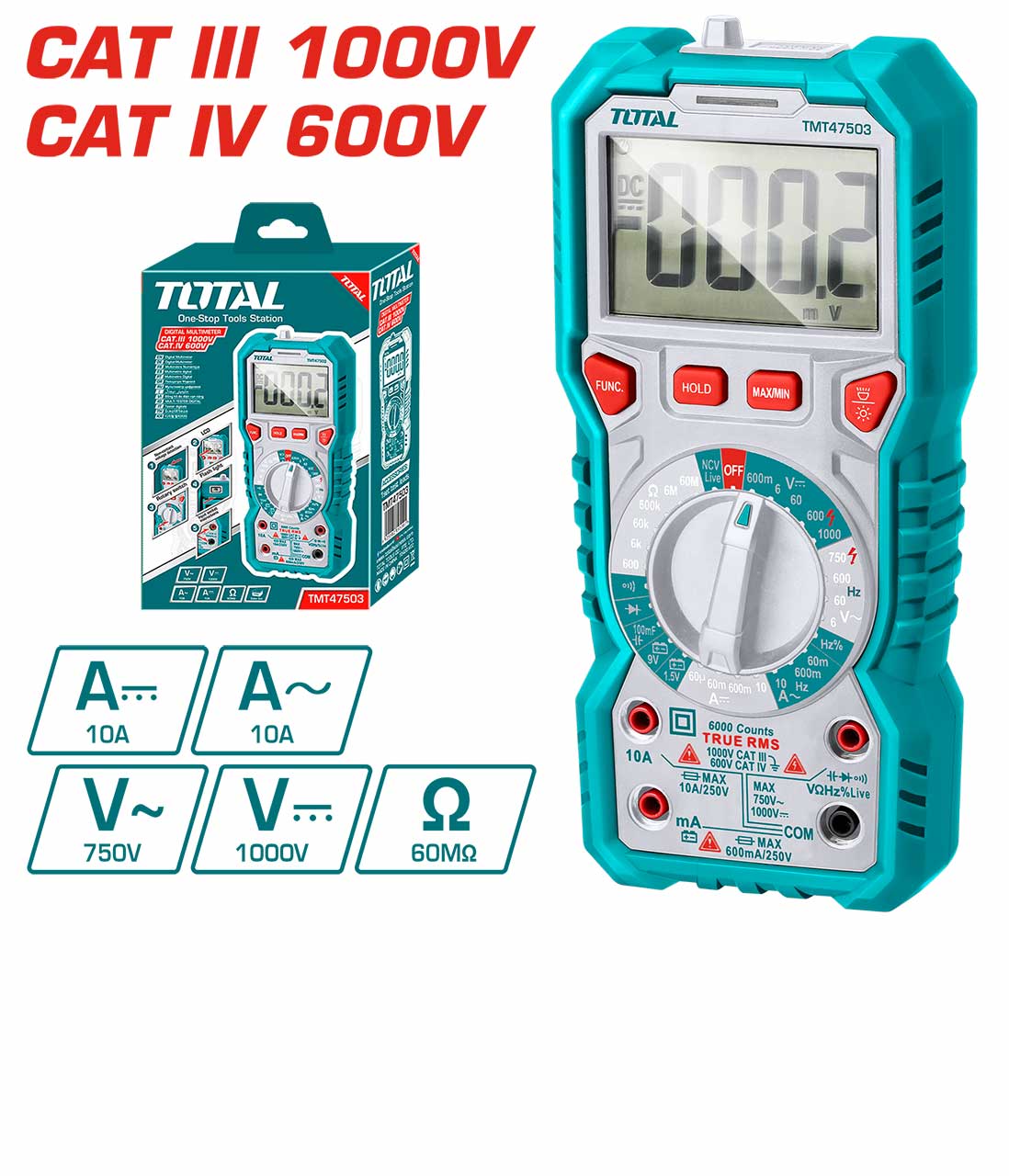

TMT47503 Digital Multimeter

CATIII 1000V

CATIV 600V

Display True RMS 6000 Counts

Features,

Sound & Light indicator for both Non-Contact Voltage (NCV) + Live

Backlight and Flash Light Indicator

Diode Test

Data Hold

Low Battery Indicator

  voltage DC: 600mV / 6V / 60V / 600V / 1000V ±(0.5% +3), AC: 6V / 60V ±(0.8%+3) / 600V / 750V ±(1.0%+10) current DC: 60µA / 60mA / 600mA ±(0.8%+3) / 10A ±(1.2% +3), AC: 60mA / 600mA ±(1.0%+3) / 10A ±(1.5% +3) rated duty cycle 1%~95% ±(2.0% +3) range Frequency: 10Hz / 100Hz / 1000Hz / 10KHz / 100KHz / 1000KHz / 10MHz ±(1.0%+3) reading Capacitance: 10nF ±(4.0%+30) / 100nF / 1000nF / 10µF / 100µF / 1000µF ±(4.0%+3) / 10mF / 100mF ±(5.0%+3) resistance 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ ±(0.8% +3) / 60MΩ ±(1.0%+30)   Model no. TMT47503 Weight 0.549kg Dimension 20.5 x 13.5 x 6.5 cm
