Product details
| Connection Type |
Tube x Tube x Tube |
|---|---|
| Material |
Stainless Steel, Nitrile, Acetal Resin |
| Maximum Operating Pressure |
10 bar |
| Maximum Operating Temperature |
+70 °C |
| Minimum Operating Temperature |
-20 °C |
| Product Type |
Equal Tee |
| Tube Size |
6 |

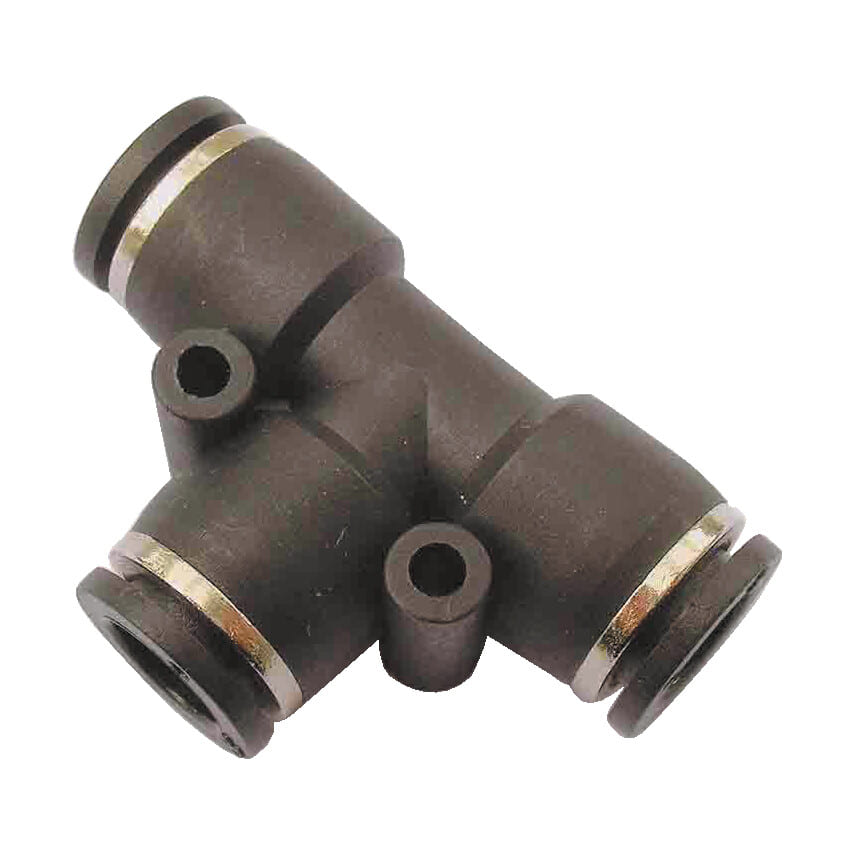

Description
Equal Tees Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar. Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane. The Equal Tees ensure quick and simple tube insertion whilst also boasting a compact lightweight design with a well proven tube retaining system. The tapered threads have a re-usable thread seal and parallel threads have a rubber washer. The main body is manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar. Available in a variety of sizes to suit your needs. Features and Benefits • Suited for use with nylon and polyurethane tubing for versatility of use • Available in a range of sizes to suit your needs • Quick and easy tube insertion with a solid seal • Lightweight design due to the acetal construction, stainless steel retaining ring and nitrile tube seal and acetal resin tube release collar Typical Applications • Engineering • Plumbing • Garages
